The V-CSB-C22 is a tall, space-saving 22 gallon (83 litre) corrosive storage cabinet with two adjustable shelves and three PP anti-corrosive trays. Its slim single-door body fits along walls in labs and production areas across Malaysia, providing segregated, compliant storage for acids and alkalis.
Key Features
- Tall, slim single-door body that saves floor space
- Fully welded 1.2 mm CRS steel body with 38 mm insulating air space
- Blue epoxy powder coat finish with good chemical resistance

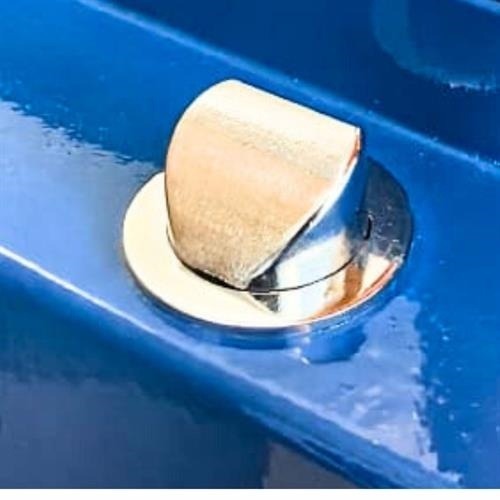

- Three-point locking with padlock and key lock latch, continuous piano hinge
- Dual vents with built-in flash arresters

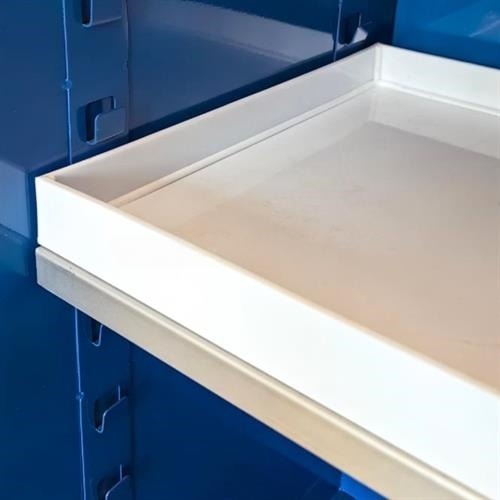

- PP anti-corrosive trays, 50 mm leakproof sump and grounding wire
Specifications
| Model | V-CSB-C22 |
|---|
| Capacity | 22 gal / 83 L |
|---|
| Body Structure | Fully welded |
|---|
| Adjustable Shelves | 2 |
|---|
| PP Anti-corrosive Trays | 3 |
|---|
| Shelf Capacity | 50 kg |
|---|
| Doors | 1 |
|---|
| Dimensions (H x W x D) | 1650 x 590 x 460 mm |
|---|
| Weight | 85 kg |
|---|
| Standards | OSHA 29 CFR 1910.106, NFPA 30 |
|---|
Applications
Semiconductor and electronics plants, laboratories, plating shops and utilities that need to separate corrosives from flammables in limited floor space.
Need a quote? Contact Haisar for pricing, bulk orders and delivery across Malaysia.
